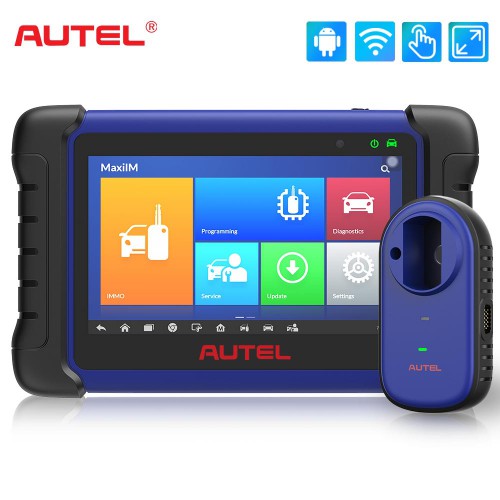

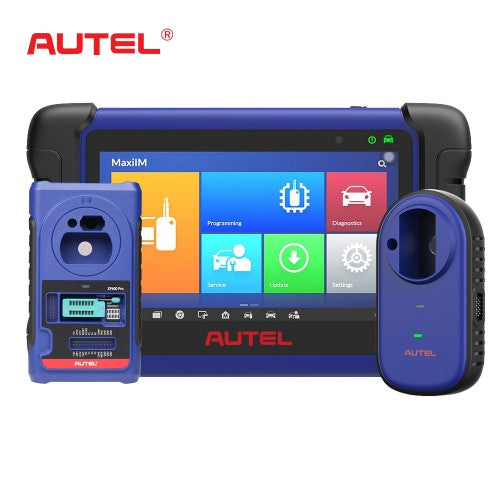

Autel MaxiIM IM508 Advanced IMMO & Key Programming Tool with XP200 Programmer Support 20+ Service Functions
Vendor:
Autel
Availability:
Many In Stock
- $849.00
- $849.00
- Unit price
- per
Subtotal:
$849.00
10 customers are viewing this product
Description
xProduct Description
Autel MaxiIM IM508 is combining powerful immobilizer and key programming capabilities with advanced automotive diagnostics and service functions.
Autel MaxiIM IM508 Advanced All-In-One IMMO and Diagnsotic ToolAutel MaxiIM IM508 Highlights:
•Global Version No IP Blocking Problem

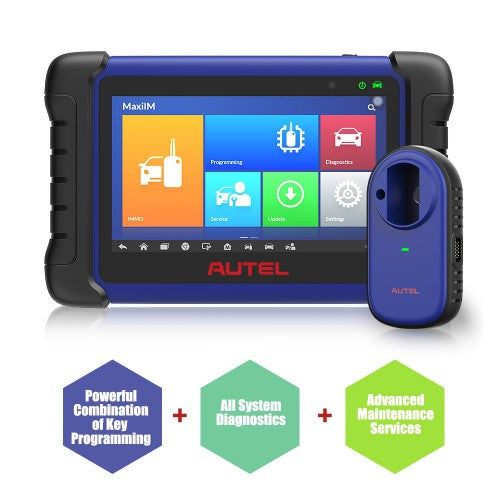

•Powerful combination of key programming/all system diagnostics/advanced maintenance services
•Smart Mode for guided and automated key learning
•Expert Mode for advanced key learning

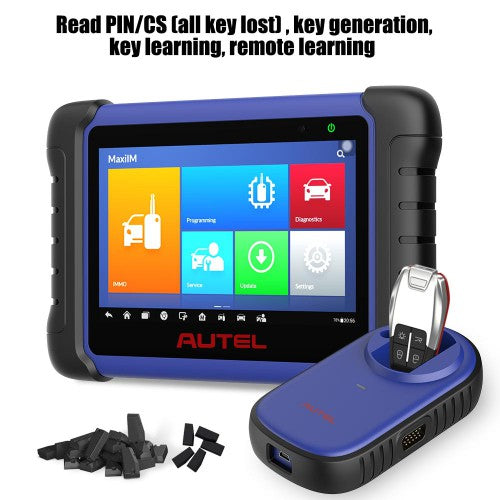

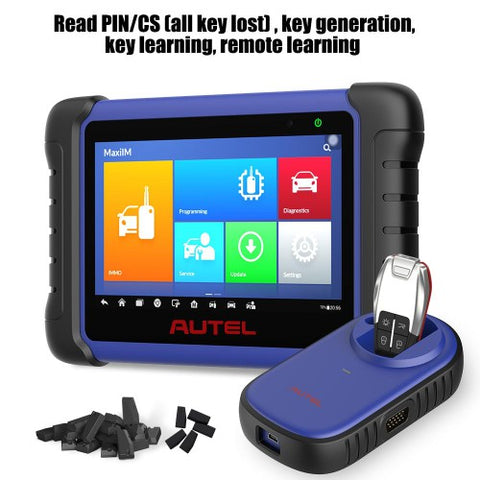

•Read PIN/CS (all key lost) , key generation, key learning, remote learning
•IMMO ECU reset/adaptation, refresh/coding
•Transpronder read/write, EEPROM/MCU read/write
•Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
•Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

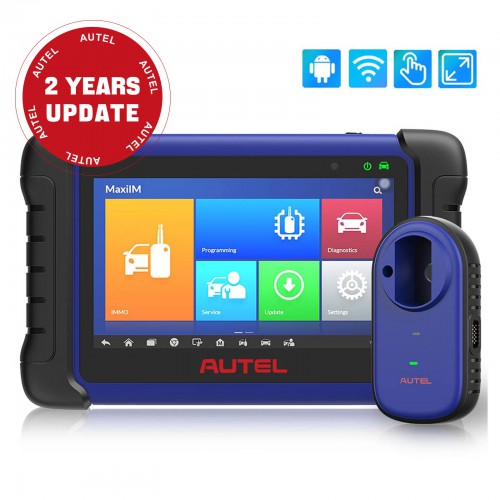

•Big Promotion: Get 2 Years Free Update Online. After 2 Years, please check Autel MaxiIM IM508 One Year Update Service
Description:
Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device. IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
Autel MaxiIM IM508 Functions:
1. Comprehensive IMMO & Key Chip Programming:
Autel IM508 key programmer can perform: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write.
Autel MaxiIM IM508 comes with XP200 Key and Chip Programmer, If you need more powerful immo function such as BMW CAS4,Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning. You can extra buy XP400 Pro or buy Autel IM508 with XP400Pro bundle deal directly. With XP400 Pro, Autel IM508 has same IMMO Funtion as IM608 Pro.
2. All System Diagnostics:

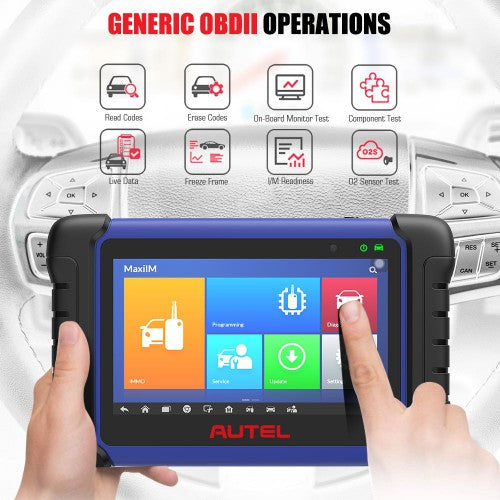

Autel MaxiIM IM508 can perform powerful OE level diagnostics for more than 80 US, Asian and European makes and models. It supports all available vehicle modules including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM and etc and covers all major systems like ABS, SRS, Engine, Transmission, Brake System and etc and show live data of multiple sensors.
3. Advanced Maintence Services:

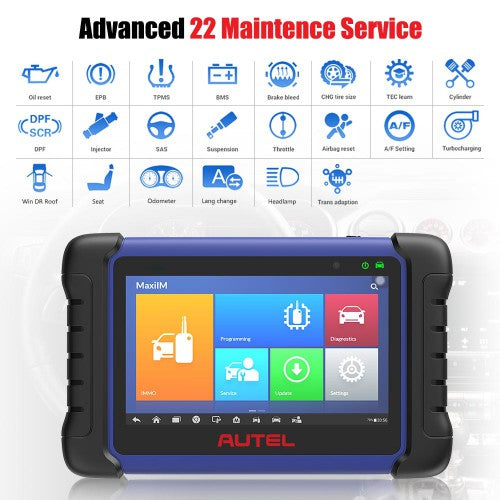

Autel MaxiIM IM508 support 22 most useful service functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active tests to test the integrity or functionality of individual system or component.
4. Smart Mode & Expert Mode
Smart Mode– accesses to a function menu where each function is configured as a smart guide system.
Expert Mode– accesses to a function menu where each function is separated from each other.
1.Make sure the Display Table is connected to power source with stable access to the Internet.
2.Tap the Update application button from the MaxiIM Job Menu;or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.
3.Check all available updates:
►If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button;if you want to update all items of diagnostic software,select Diagnose Tab and then tap the Update All button.
►If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).
4.Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.
5.When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.
Autel MaxiIM IM508 Latest Update:
July. 2021 Update:
Peugeot/Citroen V3.50
Adds Key Learning (Guided) Function for 99 Models including 508, 5008, 2008, C3, C5 and DS6.
Jaguar/Land Rover
Adds RFA/KVM Replacement Function and Key Learning Function for Models below:
Jaguar: XJ (2015-2018), XF (2015-2018), F-TYPE (2015-2018), XE (2015-2018) and F-Pace (2017-2018).
Land Rover: Range Rover (2015-2018), Range Rover Evoque (2015-2018), Range Rover Sport (2015-2018), Discovery Sport (2015-2018) and Discovery 4 (2015-2018).
GM/Holden/Hummer V3.50
Adds Key Learning Function for Holden Models below:
Astra (1995-2003), Barina (1995-1997), Calibra (1995-1996), Caprice (1993-2005), Cascada (2013-2019), Combo (1996-2001), Commodore (1997-2005), Maloo R8 (2002-2004), Monaro (2001-2006), Rodeo (1998-2008), Statesman (1993-2005) and Vectra (1997-2002).
Chrysler/Dodge/Jeep V3.70
1. Chrysler: Adds Key Learning Function and Read Password Function for Pacifica (2021).
2. Dodge: Adds Key Learning Function and Read Password Function for Ram (2021).
3. Jeep: Adds Key Learning Function and Read Password Function for Compass (2021) with Smart Key.
June. 2021 Update:
FIAT
Adds Key Learning for Blade Key Function for 500X (2018-2020)
BMW
Supports New Software Version (swfl_00002419_085_010_080) for Key Learning Function for FEM/BDC Immobilizer System. [Global Initial Launch]
Adds 196 Software Versions, Supporting Read ISN (OBD Mode) Function for B48/B58 Engine. [Global Initial Launch]
FORD/MAZDA
Adds Parameter Reset Function for Following Models for USA: C-MAX with Blade Key (2013-2015), Focus with Smart Key (2015- 2018), Escape with Smart Key (2017-2018), F-150 (2015-2020), F- 250 (2017-2019), F-350 (2017-2019) and F-Series Super Duty (2017-2019)
Adds Key Learning (Bypass PIN) Function for Bronco Sport with Smart Key (2021-) for USA
Adds Key Learning (Bypass PIN) Function for Following Models for USA: CX-5 (2021-), CX-9 (2021-), CX-3 (2021-) and Mazda 6 (2021-)
Autel MaxiIM IM508 vs. IM608 Comparison Chart:

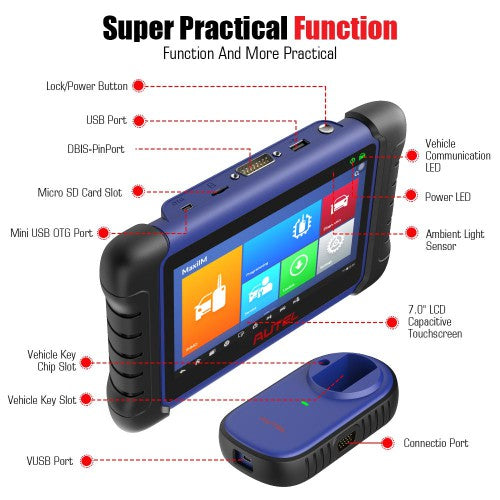

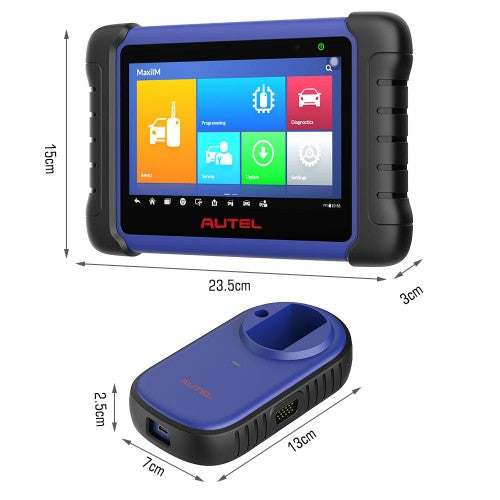

Autel MaxiIM IM508 Specifications:
Operating System: AndroidTM 4.4.4
Processor: Cortex-A9 processor (1.6 GHz)
Memory: 64GB

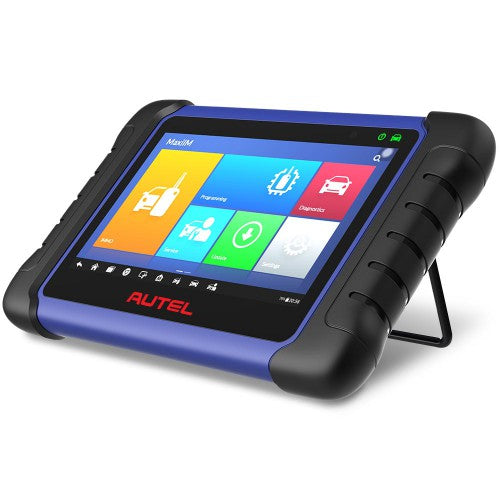

Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0
USB 2.0
Wi-Fi
Micro SD card (supports up to 32GB)
Sensors: Ambient light sensor for brightness auto changing
Audio Input / Output: Input: N/A
Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Net Weight: 788 g (2.42 lb.)
Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

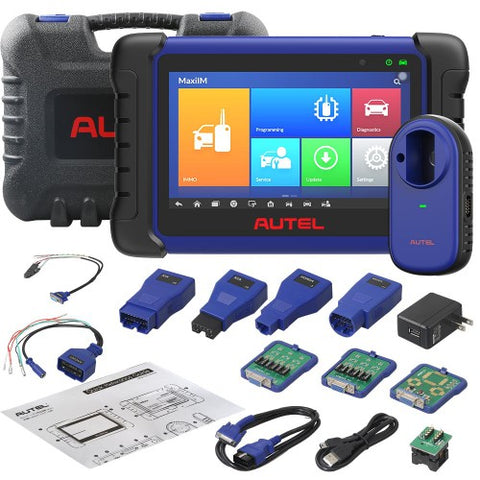

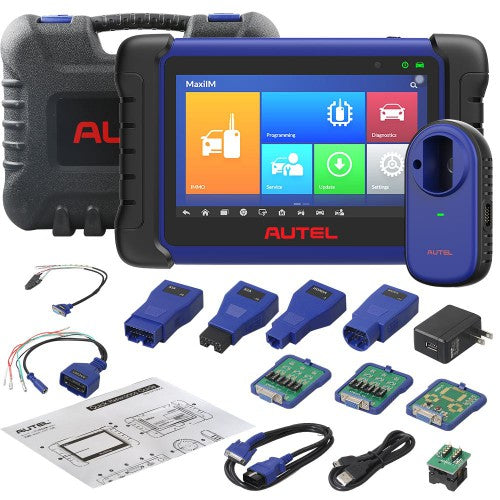

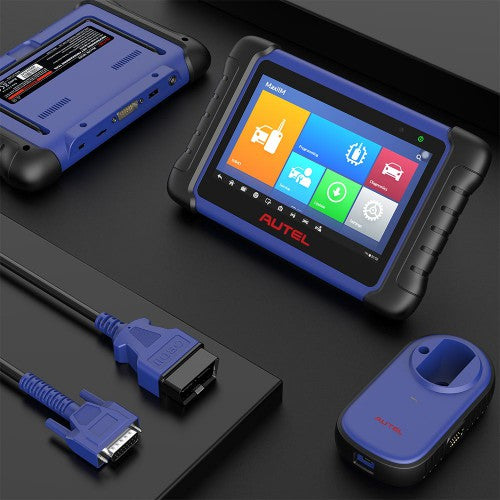

Autel MaxiIM IM508 Package List:
MaxiIM IM508 Tablet
XP200 Key Programmer
AAC001–MED17 Cable
Honda-3 Adaptor
KIA-20 Adaptor
KIA-10 Adaptor
Mazda-17 Adaptor
USB External Power Adapter
Carrying Case

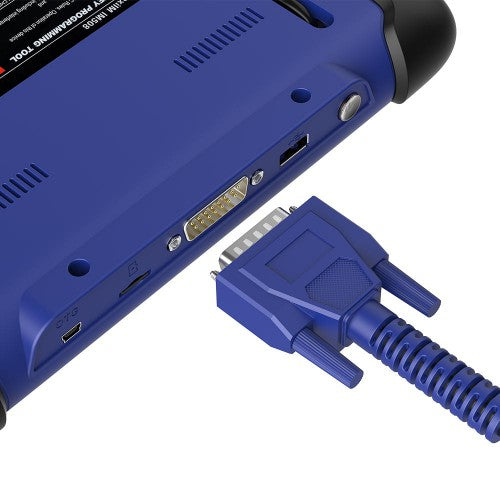

Main cable
Quick guide
Mini USB Cable
Carry Case
